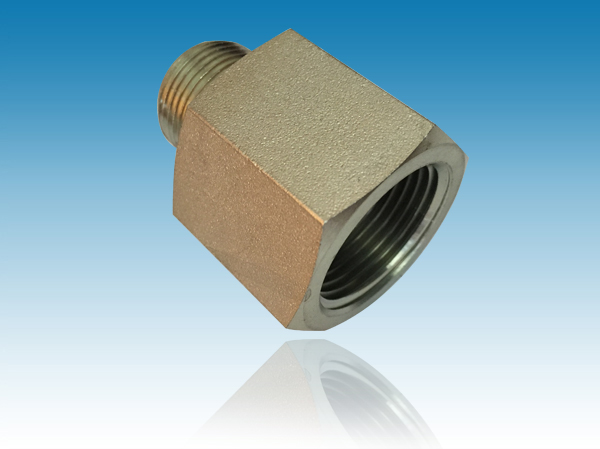

【產品名稱】 英制錐螺紋接頭 5405系列
【所屬分類】 英制螺紋接頭 【產品型號】 5405 【產品品牌】 寧吉羽立 NJ 【生產廠家】 寧波市寧吉羽立流體設備有限公司
產品詳情
| 品牌： | NJ |
| 型號： | 5405 |
| 材質： | 碳鋼 |
| 規格： | 直管接頭 |
| 加工定制 | 是 |
| 適用范圍： | 機械設備 |
| 螺紋類型： | 錐螺紋 |
| 鏈接方式 | 螺紋 |
| Product ID | Description | A1 NPTF | A2 NPTF | A1 DRILL | L LGTH |
| 5405-01-02 | 01MP-02FP Straight Expander | 1/16-27 | 1/8-27 | 0.117 | 1.04 |
| 5405-02-02 | 02MP-02FP Straight Expander | 1/8-27 | 1/8-27 | 0.188 | 1.04 |
| 5405-02-04 | 02MP-04FP Straight Expander | 1/8-27 | 1/4-18 | 0.188 | 1.21 |
| 5405-02-06 | 02MP-06FP Straight Expander | 1/8-27 | 3/8-18 | 0.188 | 1.25 |
| 5405-02-08 | 02MP-08FP Straight Expander | 1/8-27 | 1/2-14 | 0.188 | 1.49 |
| 5405-04-02 | 04MP-02FP Straight Expander | 1/4-18 | 1/8-27 | 0.281 | 1.21 |
| 5405-04-04 | 04MP-04FP Straight Expander | 1/4-18 | 1/4-18 | 0.281 | 1.39 |
| 5405-04-06 | 04MP-06FP Straight Expander | 1/4-18 | 3/8-18 | 0.281 | 1.44 |
| 5405-04-08 | 04MP-08FP Straight Expander | 1/4-18 | 1/2-14 | 0.281 | 1.68 |
| 5405-04-12 | 04MP-12FP Straight Expander | 1/4-18 | 3/4-14 | 0.281 | 1.74 |
| 5405-06-12 | 06MP-02FP Straight Expander | 3/8-18 | 1/8-27 | 0.333 | 1.21 |
| 5405-06-04 | 06MP-04FP Straight Expander | 3/8-18 | 1/4-18 | 0.406 | 1.41 |
| 5405-06-06 | 06MP-06FP Straight Expander | 3/8-18 | 3/8-18 | 0.406 | 1.44 |
| 5405-06-08 | 06MP-08FP Straight Expander | 3/8-18 | 1/2-14 | 0.406 | 1.68 |
| 5405-06-12 | 06MP-12FP Straight Expander | 3/8-18 | 3/4-14 | 0.406 | 1.74 |
| 5405-08-04 | 08MP-04FP Straight Expander | 1/2-14 | 1/4-18 | 0.431 | 1.60 |
| 5405-08-06 | 08MP-06FP Straight Expander | 1/2-14 | 3/8-18 | 0.531 | 1.66 |
| 5405-08-08 | 08MP-08FP Straight Expander | 1/2-14 | 1/2-14 | 0.531 | 1.87 |
| 5405-08-12 | 08MP-12FP Straight Expander | 1/2-14 | 3/4-14 | 0.531 | 1.93 |
| 5405-08-16 | 08MP-16FP Straight Expander | 1/2-14 | 1-11-1/2 | 0.531 | 2.18 |
| 5405-12-04 | 12MP-04FP Straight Expander | 3/4-14 | 1/4-18 | 0.431 | 1.60 |
| 5405-12-06 | 12MP-06FP Straight Expander | 3/4-14 | 3/8-18 | 0.571 | 1.66 |
| 5405-12-08 | 12MP-08FP Straight Expander | 3/4-14 | 1/2-14 | 0.697 | 1.89 |
| 5405-12-12 | 12MP-12FP Straight Expander | 3/4-14 | 3/4-14 | 0.719 | 1.93 |
| 5405-12-16 | 12MP-16FP Straight Expander | 3/4-14 | 1-11-1/2 | 0.719 | 2.18 |
| 5405-12-20 | 12MP-20FP Straight Expander | 3/4-14 | 1-1/4-11-1/2 | 0.719 | 2.27 |
| 5405-16-08 | 16MP-08FP Straight Expander | 1-11-1/2 | 1/2-14 | 0.697 | 2.08 |
| 5405-16-12 | 16MP-12FP Straight Expander | 1-11-1/2 | 3/4-14 | 0.907 | 2.14 |
| 5405-16-16 | 16MP-16FP Straight Expander | 1-11-1/2 | 1-11-1/2 | 0.938 | 2.37 |
| 5405-16-20 | 16MP-20FP Straight Expander | 1-11-1/2 | 1-1/4-11-1/2 | 0.938 | 2.46 |
| 5405-16-24 | 16MP-24FP Straight Expander | 1-11-1/2 | 1-1/2-11-1/2 | 0.938 | 2.47 |
| 5405-20-16 | 20MP-16FP Straight Expander | 1-1/4-11-1/2 | 1-11-1/2 | 1.142 | 2.42 |
| 5405-20-20 | 20MP-20FP Straight Expander | 1-1/4-11-1/2 | 1-1/4-11-1/2 | 1.250 | 2.49 |
| 5405-20-24 | 20MP-24FP Straight Expander | 1-1/4-11-1/2 | 1-1/2-11-1/2 | 1.250 | 2.50 |
| 5405-20-32 | 20MP-32FP Straight Expander | 1-1/4-11-1/2 | 2-11-1/2 | 1.250 | 2.60 |
| 5405-24-20 | 24MP-20FP Straight Expander | 1-1/2-11-1/2 | 1-1/4-11-1/2 | 1.486 | 2.54 |
| 5405-24-24 | 24MP-24FP Straight Expander | 1-1/2-11-1/2 | 1-1/2-11-1/2 | 1.500 | 2.53 |
| 5405-24-32 | 24MP-32FP Straight Expander | 1-1/2-11-1/2 | 2-11-1/2 | 1.500 | 2.63 |
| 5405-32-32 | 32MP-32FP Straight Expander | 2-11-1/2 | 2-11-1/2 | 1.938 | 2.66 |
