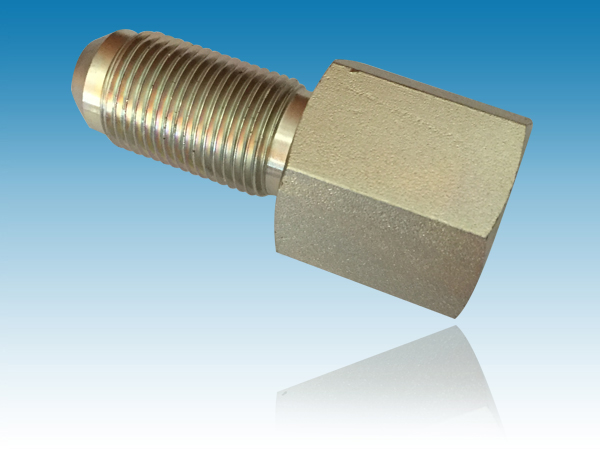

【產品名稱】 美制JIC螺紋37°擴口式直管接頭 2705系列
【所屬分類】 美制JIC螺紋37°接頭 【產品型號】 2705 【產品品牌】 寧吉羽立 NJ 【生產廠家】 寧波市寧吉羽立流體設備有限公司
產品詳情
| 品牌： | NJ |
| 型號： | 2705 |
| 材質： | 碳鋼 |
| 規格： | 直管接頭 |
| 加工定制 | 是 |
| 適用范圍： | 機械設備 |
| 螺紋類型： | 直螺紋 |
| 鏈接方式 | 螺紋 |

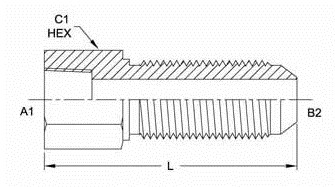

| Product ID | Description | TUBE O.D. | A1 NPTF | B2 SAE 37 | B2 DRILL | L LGTH | C1 HEX |
| 2705-02-04 | 02FP-04MJ Bulkhead Straight | 1/4 | 1/8-27 | 7/16-20 | 0.172 | 1.89 | 0.688 |
| 2705-02-04-SS | 02FP-04MJ Bulkhead Straight Stnls | 1/4 | 1/8-27 | 7/16-20 | 0.172 | 1.89 | 0.688 |
| 2705-02-05-SS | 02FP-05MJ Bulkhead Straight Stnls | 5/16 | 1/8-27 | 1/2-20 | 0.234 | 1.89 | 0.750 |
| 2705-04-04 | 04FP-04MJ Bulkhead Straight | 1/4 | 1/4-18 | 7/16-20 | 0.172 | 2.09 | 0.750 |
| 2705-04-04-SS | 04FP-04MJ Bulkhead Straight Stnls | 1/4 | 1/4-18 | 7/16-20 | 0.172 | 2.09 | 0.750 |
| 2705-04-06 | 04FP-06MJ Bulkhead Straight | 3/8 | 1/4-18 | 9/16-18 | 0.297 | 2.17 | 0.812 |
| 2705-04-06-SS | 04FP-06MJ Bulkhead Straight Stnls | 3/8 | 1/4-18 | 9/16-18 | 0.297 | 2.17 | 0.812 |
| 2705-06-06 | 06FP-06MJ Bulkhead Straight | 3/8 | 3/8-18 | 9/16-18 | 0.297 | 2.23 | 0.875 |
| 2705-06-06-SS | 06FP-06MJ Bulkhead Straight Stnls | 3/8 | 3/8-18 | 9/16-18 | 0.297 | 2.23 | 0.875 |
| 2705-06-08 | 06FP-08MJ Bulkhead Straight | 1/2 | 3/8-18 | 3/4-16 | 0.391 | 2.39 | 1.000 |
| 2705-06-08-SS | 06FP-08MJ Bulkhead Straight Stnls | 1/2 | 3/8-18 | 3/4-16 | 0.391 | 2.39 | 1.000 |
| 2705-08-06 | 08FP-06MJ Bulkhead Straight | 3/8 | 1/2-14 | 9/16-18 | 0.297 | 2.46 | 1.125 |
| 2705-08-06-SS | 08FP-06MJ Bulkhead Straight Stnls | 3/8 | 1/2-14 | 9/16-18 | 0.297 | 2.46 | 1.125 |
| 2705-08-08 | 08FP-08MJ Bulkhead Straight | 1/2 | 1/2-14 | 3/4-16 | 0.391 | 2.62 | 1.125 |
| 2705-08-08-SS | 08FP-08MJ Bulkhead Straight Stnls | 1/2 | 1/2-14 | 3/4-16 | 0.391 | 2.62 | 1.125 |
| 2705-08-10 | 08FP-10MJ Bulkhead Straight | 5/8 | 1/2-14 | 7/8-14 | 0.484 | 2.76 | 1.125 |
| 2705-08-10-SS | 08FP-10MJ Bulkhead Straight Stnls | 5/8 | 1/2-14 | 7/8-14 | 0.484 | 2.76 | 1.125 |
| 2705-12-12 | 12FP-12MJ Bulkhead Straight | 3/4 | 3/4-14 | 1-1/16-12 | 0.609 | 2.99 | 1.375 |
| 2705-12-12-SS | 12FP-12MJ Bulkhead Straight Stnls | 3/4 | 3/4-14 | 1-1/16-12 | 0.609 | 2.99 | 1.375 |
| 2705-12-14 | 12FP-14MJ Bulkhead Straight | 7/8 | 3/4-14 | 1-3/16-12 | 0.719 | 2.99 | 1.500 |
| 2705-16-16 | 16FP-16MJ Bulkhead Straight | 1 | 1-11-1/2 | 1-5/16-12 | 0.844 | 3.24 | 1.625 |
| 2705-16-16-SS | 16FP-16MJ Bulkhead Straight Stnls | 1 | 1-11-1/2 | 1-5/16-12 | 0.844 | 3.24 | 1.625 |
| 2705-20-20 | 20FP-20MJ Bulkhead Straight | 1-1/4 | 1-1/4-11-1/2 | 1-5/8-12 | 1.078 | 3.38 | 2.000 |
| 2705-20-20-SS | 20FP-20MJ Bulkhead Straight Stnls | 1-1/4 | 1-1/4-11-1/2 | 1-5/8-12 | 1.078 | 3.38 | 2.000 |
| 2705-24-24 | 24FP-24MJ Bulkhead Straight | 1-1/2 | 1-1/2-11-1/2 | 1-7/8-12 | 1.312 | 3.40 | 2.375 |
| 2705-24-24-SS | 24FP-24MJ Bulkhead Straight Stnls | 1-1/2 | 1-1/2-11-1/2 | 1-7/8-12 | 1.312 | 3.40 | 2.375 |
