產品中心 首頁 > 美制接頭 > 美制JIC螺紋37°接頭 > 美制JIC螺紋37°彎管接頭 2503系列

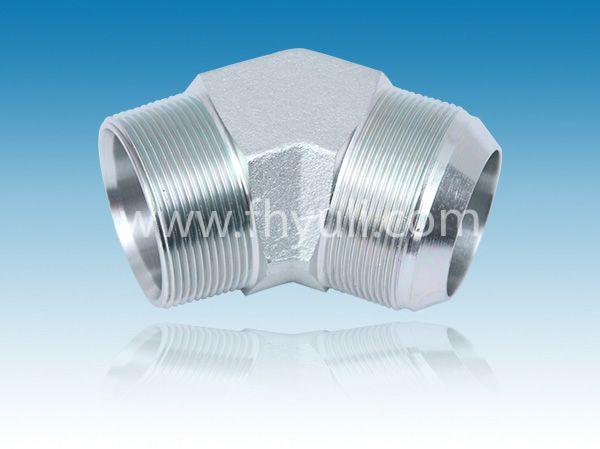

【產品名稱】	美制JIC螺紋37°彎管接頭 2503系列
【所屬分類】	美制JIC螺紋37°接頭
【產品型號】	2503
【產品品牌】	寧吉羽立 NJ
【生產廠家】	寧波市寧吉羽立流體設備有限公司

產品詳情

Product ID	Description	TUBE O.D.	B1 SAE 37	A2 NPTF	B1 DRILL	A2 DRILL	M LGTH	L LGTH	Y FLATS
2503-02 -02-FG	02MJ-02MP 45°Elb Forg	1/8	5/16-24	1/8-27	0.062	0.188	0.69	0.52	0.438
2503-03 -02-FG	03MJ-02MP 45°Elb Forg	3/16	3/8-24	1/8-27	0.125	0.188	0.69	0.52	0.438
2503-04 -02-FG	04MJ-02MP 45°Elb Forg	1/4	7/16-20	1/8-27	0.172	0.188	0.72	0.64	0.438
2503-04 -04-FG	04MJ-04MP 45°Elb Forg	1/4	7/16-20	1/4-18	0.172	0.281	0.82	0.86	0.562
2503-04 -06-FG	04MJ-06MP 45°Elb Forg	1/4	7/16-20	3/8-18	0.172	0.406	0.85	0.95	0.750
2503-04 -08-FG	04MJ-08MP 45°Elb Forg	1/4	7/16-20	1/2-14	0.172	0.531	0.87	1.17	0.875
2503-05 -02-FG	05MJ-02MP 45°Elb Forg	5/16	1/2-20	1/8-27	0.234	0.188	0.77	0.64	0.562
2503-05 -04-FG	05MJ-04MP 45°Elb Forg	5/16	1/2-20	1/4-18	0.234	0.281	0.82	0.86	0.562
2503-05 -06-FG	05MJ-06MP 45°FORGED 1	5/16	1/2-20	3/8-18	0.234	0.406	0.85	0.95	0.750
2503-06 -02-FG	06MJ-02MP 45°Elb Forg	3/8	9/16-18	1/8-27	0.297	0.188	0.83	0.67	0.562
2503-06 -04-FG	06MJ-04MP 45°Elb Forg	3/8	9/16-18	1/4-18	0.297	0.281	0.83	0.86	0.562
2503-06 -06-FG	06MJ-06MP 45°Elb Forg	3/8	9/16-18	3/8-18	0.297	0.406	0.87	0.95	0.750
2503-06 -08-FG	06MJ-08MP 45°Elb Forg	3/8	9/16-18	1/2-14	0.297	0.531	0.88	1.17	0.875
2503-06 -12-FG	06MJ-12MP 45°Elb Forg	3/8	9/16-18	3/4-14	0.297	0.719	0.93	1.20	1.062
2503-08 -04-FG	08MJ-04MP 45°Elb Forg	1/2	3/4-16	1/4-18	0.391	0.281	0.98	0.95	0.750
2503-08 -06-FG	08MJ-06MP 45°Elb Forg	1/2	3/4-16	3/8-18	0.391	0.406	0.98	0.95	0.750
2503-08 -08-FG	08MJ-08MP 45°Elb Forg	1/2	3/4-16	1/2-14	0.391	0.531	0.99	1.17	0.875
2503-08 -12-FG	08MJ-12MP 45°Elb Forg	1/2	3/4-16	3/4-14	0.391	0.719	1.04	1.20	1.062
2503-10 -04-FG	10MJ-04MP 45°Elb Forg	5/8	7/8-14	1/4-18	0.484	0.281	1.11	0.98	0.875
2503-10 -06-FG	10MJ-06MP 45°ElbForg	5/8	7/8-14	3/8-18	0.484	0.406	1.11	0.98	0.875
2503-10 -08-FG	10MJ-08MP 45°Elb Forg	5/8	7/8-14	1/2-14	0.484	0.531	1.11	1.17	0.875
2503-10 -12-FG	10MJ-12MP 45°Elb Forg	5/8	7/8-14	3/4-14	0.484	0.719	1.16	1.20	1.062
2503-12 -08-FG	12MJ-08MP 45°Elb Forg	3/4	1-1/16-12	1/2-14	0.609	0.531	1.28	1.20	1.062
2503-12 -12-FG	12MJ-12MP 45°Elb Forg	3/4	1-1/16-12	3/4-14	0.609	0.719	1.28	1.20	1.062
2503-12 -16-FG	12MJ-16MP 45°Elb Forg	3/4	1-1/16-12	1-11-1/2	0.609	0.938	1.42	1.48	1.312
2503-14 -12-FG	14MJ-12MP 45°Elb Forg	7/8	1-3/16-12	3/4-14	0.719	0.719	1.45	1.30	1.312
2503-16 -08-FG	16MJ-08MP 45°Elb Forg	1	1-5/16-12	1/2-14	0.844	0.531	1.47	1.29	1.312
2503-16 -12-FG	16MJ-12MP 45°Elb Forg	1	1-5/16-12	3/4-14	0.844	0.719	1.47	1.29	1.312
2503-16 -16-FG	16MJ-16MP 45°Elb Forg	1	1-5/16-12	1-11-1/2	0.844	0.938	1.47	1.48	1.312
2503-16 -20-FG	16MJ-20MP 45°Elb Forg	1	1-5/16-12	1-1/4-11-1/2	0.844	1.250	1.54	1.67	1.625
2503-20 -16-FG	20MJ-16MP 45°Elb Forg	1 1/4	1-5/8-12	1-11-1/2	1.078	0.938	1.59	1.64	1.625
2503-20 -20-FG	20MJ-20MP 45°Elb Forg	1 1/4	1-5/8-12	1-1/4-11-1/2	1.078	1.250	1.59	1.67	1.625
2503-20 -24-FG	20MJ-24MP 45°Elb Forg	1 1/4	1-5/8-12	1-1/2-11-1/2	1.078	1.500	1.65	1.77	1.875
2503-24 -20-FG	24MJ-20MP 45°Elb Forg	1 1/2	1-7/8-12	1-1/4-11-1/2	1.312	1.250	1.78	1.74	1.875
2503-24 -24-FG	24MJ-24MP 45°Elb Forg	1 1/2	1-7/8-12	1-1/2-11-1/2	1.312	1.500	1.78	1.77	1.875
2503-32 -32-FG	32MJ-32MP 45°Elb Forg	2	2-1/2-12	2-11-1/2	1.781	1.938	2.22	2.11	2.500
2503-40 -40-FG	40MJ-40MP 45°Elb Forg	2 1/2	3-8	2 1/2-8	2.318	2.318	2.49	2.2	3.324
